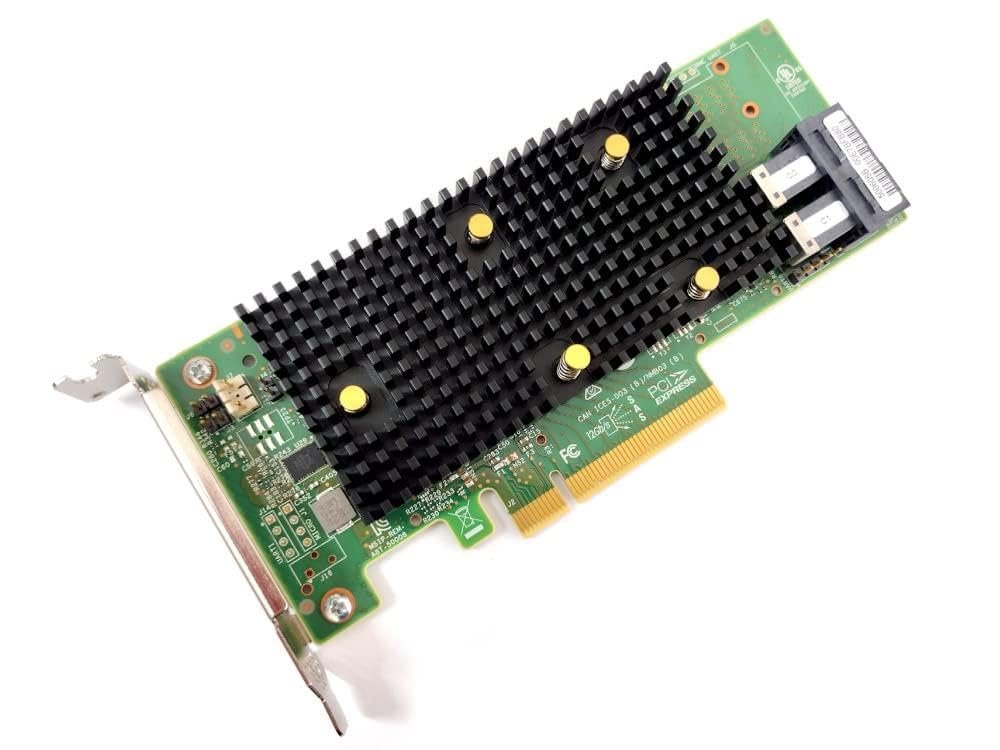

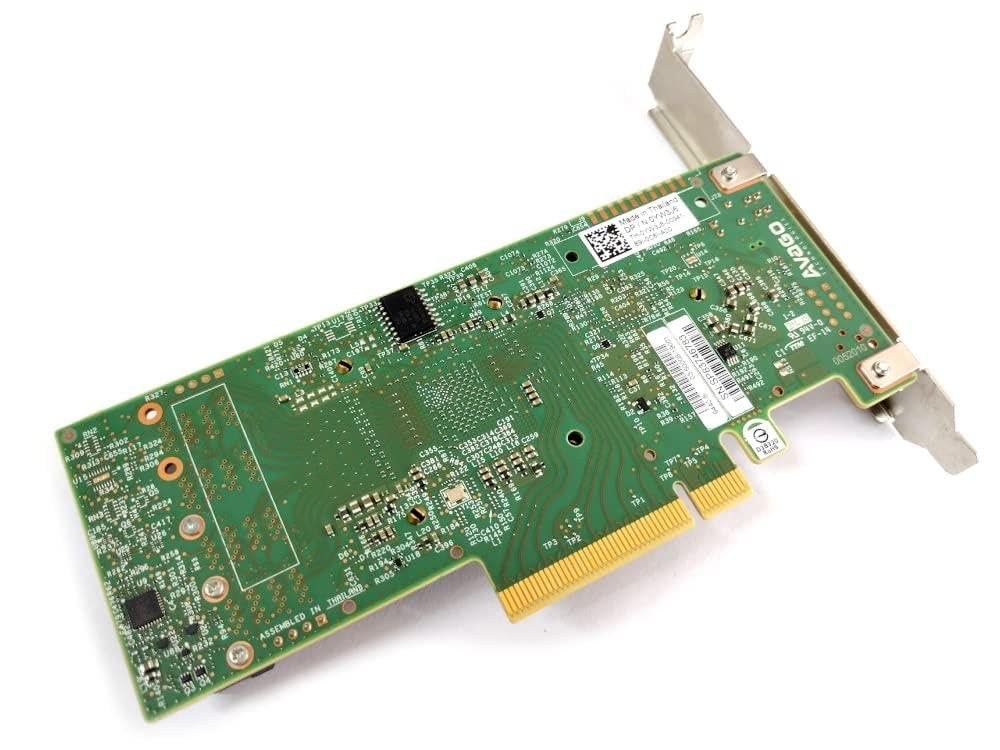

Broadcom MegaRAID 9440-8i RAID Controller – High-Performance SAS/SATA Storage

Speed and Compatibility for Demanding Workloads

The Broadcom MegaRAID 9440-8i RAID controller provides enterprise-level performance and reliable data protection. It connects up to 63 SAS/SATA drives or 24 NVMe drives with expander backplanes, making it ideal for data centers and enterprise servers.

Robust Storage Features

This controller includes 8 internal SAS/SATA ports. It uses a 12Gb/s data transfer rate to ensure fast data access. Moreover, its PCIe 3.1 x8 host interface boosts performance during high I/O workloads.

RAID Support and Expandability

You can configure the controller in several RAID levels, including 0, 1, 5, 6, 10, 50, and 60. Therefore, it offers both speed and redundancy, depending on your needs. In addition, it supports up to 63 drives, giving your system flexible expansion options.

Hardware and Environmental Details

Broadcom designed this controller in a low-profile format, measuring 6.127” x 2.712”. It runs within an operating temperature range of 10°C to 55°C. The unit draws power from 3.3V and 12V rails, ensuring stable performance.

Furthermore, it includes 16MB of onboard flash memory. With an MTBF of 3,000,000 hours, it provides long-term reliability in critical infrastructure.

Why Choose the Broadcom MegaRAID 9440-8i?

• Connects SAS, SATA, and NVMe drives

• Offers 12Gb/s data transfer

• Supports multiple RAID levels

• Delivers high MTBF and low power needs

• Designed for scalability and performance

As a result, the controller is a smart choice for IT environments requiring speed, flexibility, and long-term reliability.
