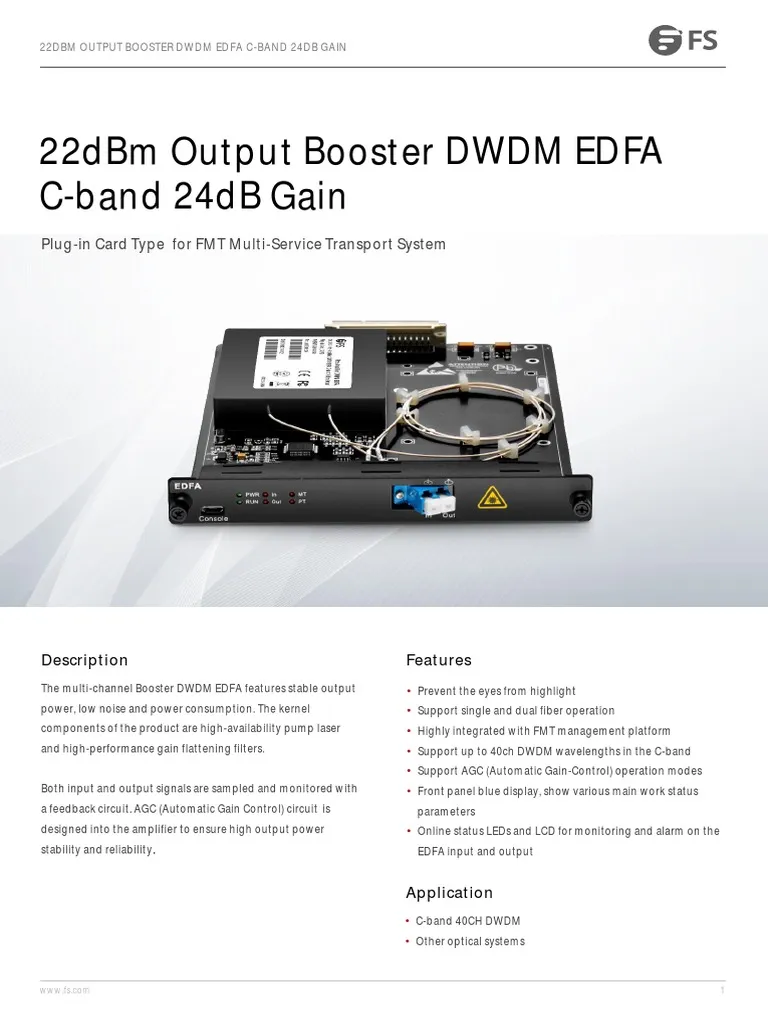

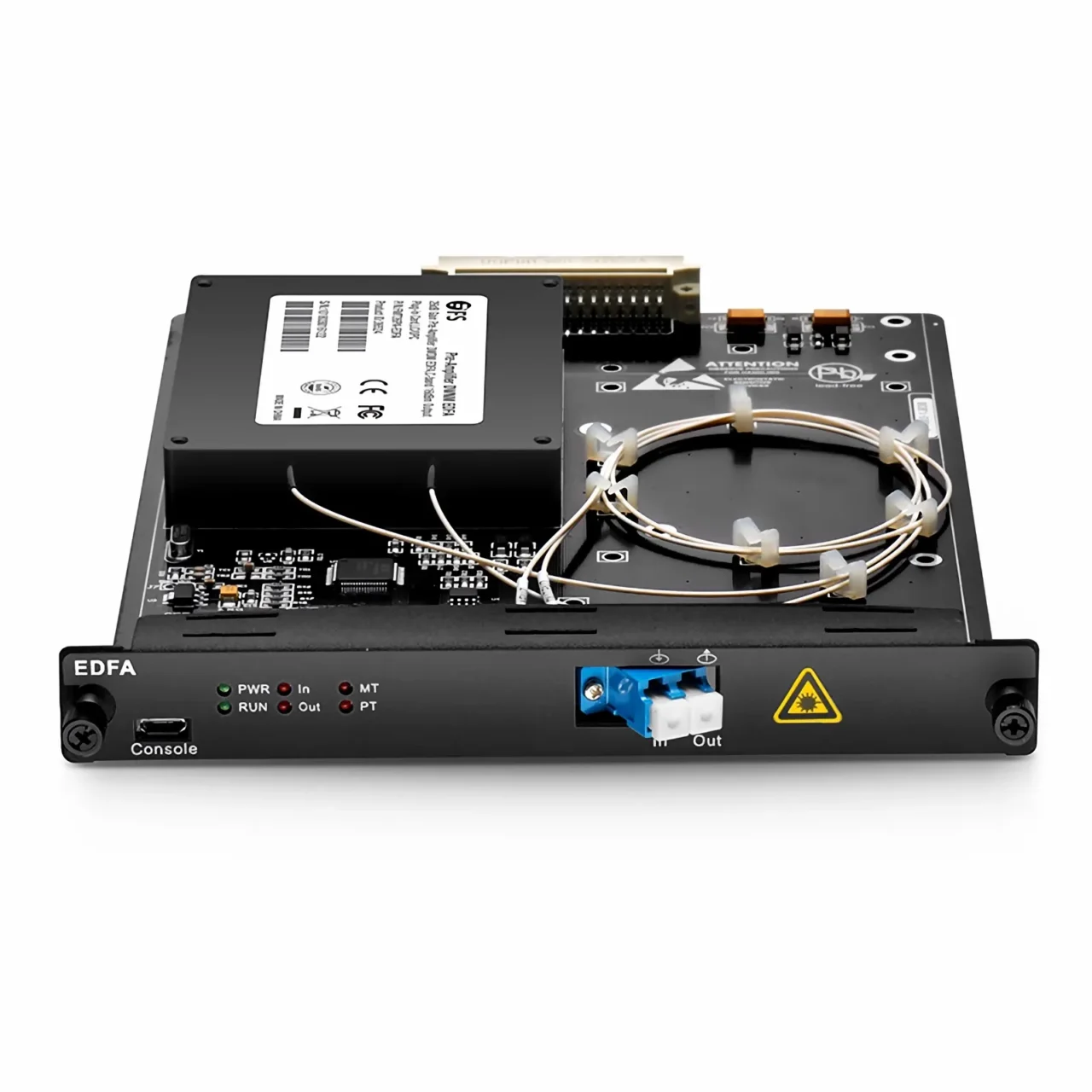

FS Booster DWDM EDFA 22dBm Output – C-Band 24dB Gain Plug-In Optical Amplifier Card with LC/UPC Interface

High-capacity fiber optic networks demand precise signal amplification, ultra-low noise performance, and long-distance transmission stability. In modern DWDM (Dense Wavelength Division Multiplexing) infrastructures, optical amplification plays a critical role in maintaining signal integrity across metropolitan, regional, and long-haul fiber links. The FS Booster DWDM EDFA with 22dBm output power and 24dB gain is a carrier-grade optical amplifier plug-in card engineered to deliver reliable C-band amplification, efficient power boosting, and seamless integration into professional optical transport systems.

At Lansotech Solutions in Kenya, we provide enterprise-level fiber networking components designed for ISPs, data centers, telecom operators, and large-scale enterprise backbones. This in-depth guide explains the features, operational advantages, deployment scenarios, and technical specifications of the FS Booster DWDM EDFA C-band amplifier, enabling informed decisions for high-performance optical network expansion.

Carrier-Grade EDFA Technology for DWDM Networks

The Erbium-Doped Fiber Amplifier (EDFA) is the industry standard for optical signal amplification in DWDM systems. The FS Booster DWDM EDFA is engineered for:

• High optical output power up to 22dBm

• Stable 24dB signal gain across the C-band spectrum

• Low noise figure for clean signal amplification

• Consistent wavelength transparency for DWDM channels

• Reliable continuous operation in telecom environments

This ensures long-distance optical transmission without electrical conversion, preserving signal quality and network efficiency.

Optimized C-Band Amplification for Dense Wavelength Transport

DWDM networks rely heavily on the C-band wavelength range (approximately 1530–1565 nm) for high-capacity optical communication. The FS Booster EDFA delivers:

• Uniform amplification across multiple DWDM channels

• Improved optical signal-to-noise ratio (OSNR)

• Extended transmission reach for metro and long-haul fiber

• Stable performance in high-traffic backbone links

These capabilities make it ideal for telecom core networks, ISP backbones, and enterprise optical transport systems.

22dBm High Output Power for Long-Distance Fiber Links

Output power directly affects transmission distance and signal reliability. With 22dBm optical output, this booster EDFA enables:

• Extended fiber span coverage without regeneration

• Improved downstream signal strength

• Enhanced DWDM channel stability

• Reduced need for additional amplification stages

This makes the module essential for long-haul fiber routes, regional backbone expansion, and high-capacity inter-site connectivity.

24dB Gain for Efficient Optical Signal Boosting

The 24dB gain performance ensures:

• Strong amplification of attenuated optical signals

• Balanced power levels across DWDM wavelengths

• Reliable compensation for fiber loss and splitter attenuation

• Stable operation in multi-channel optical environments

Such performance is critical in dense optical transport networks where signal degradation must be minimized.

Plug-In Card Design for Modular Optical Platforms

The plug-in card form factor allows seamless deployment within:

• DWDM chassis systems

• Optical transport platforms

• Telecom rack-mounted infrastructure

• Carrier-grade modular network equipment

Benefits include:

• Hot-swappable installation for minimal downtime

• Scalable network expansion

• Simplified maintenance and upgrades

• Efficient space utilization in telecom racks

LC/UPC Optical Interface for Secure Fiber Connectivity

The LC/UPC connector interface provides:

• Low insertion loss for efficient signal transfer

• High return loss for signal integrity

• Secure fiber termination in dense patch environments

• Compatibility with standard telecom fiber infrastructure

This ensures stable optical connectivity across professional fiber deployments.

Why You Should Consider the FS Booster DWDM EDFA

Organizations deploying DWDM fiber infrastructure gain significant advantages from this carrier-grade optical amplifier:

1. Extended Transmission Distance

High 22dBm output power supports long-haul and metro fiber spans.

2. Stable Multi-Channel DWDM Amplification

Provides uniform C-band gain for dense wavelength transport.

3. Low Noise Signal Enhancement

Maintains clean optical performance and strong OSNR.

4. Modular Plug-In Flexibility

Enables scalable telecom network architecture.

5. Carrier-Grade Reliability

Designed for continuous 24/7 telecom operation.

These strengths position the FS Booster DWDM EDFA as a critical component in modern fiber-optic communication systems.

Ideal Deployment Scenarios

At Lansotech Solutions, this DWDM EDFA booster amplifier is commonly deployed in:

• Telecommunication backbone networks

• Internet service provider fiber infrastructure

• Data center interconnection links

• Metropolitan optical transport systems

• Enterprise long-distance fiber connectivity

Its combination of power, gain stability, and modular integration ensures high-reliability optical transmission across demanding environments.
