HP EliteBook 8470p Screen Replacement – Complete Guide

If the screen on your HP EliteBook 8470p is cracked, flickering, displaying lines, or completely blank, you likely need a screen replacement. This guide explains what screen you need, how to install it, tools required, and important tips to help you replace the display correctly and safely.

Signs Your HP EliteBook 8470p Needs a Screen Replacement

You may need a new screen if you notice:

• Cracked or broken display glass

• Vertical or horizontal lines on the screen

• Flickering or unstable image

• Black or blank screen while the laptop powers on

• Distorted colors or dead pixels

These issues commonly indicate damage to the LCD panel, which cannot be fixed and must be replaced.

Compatible Replacement Screens

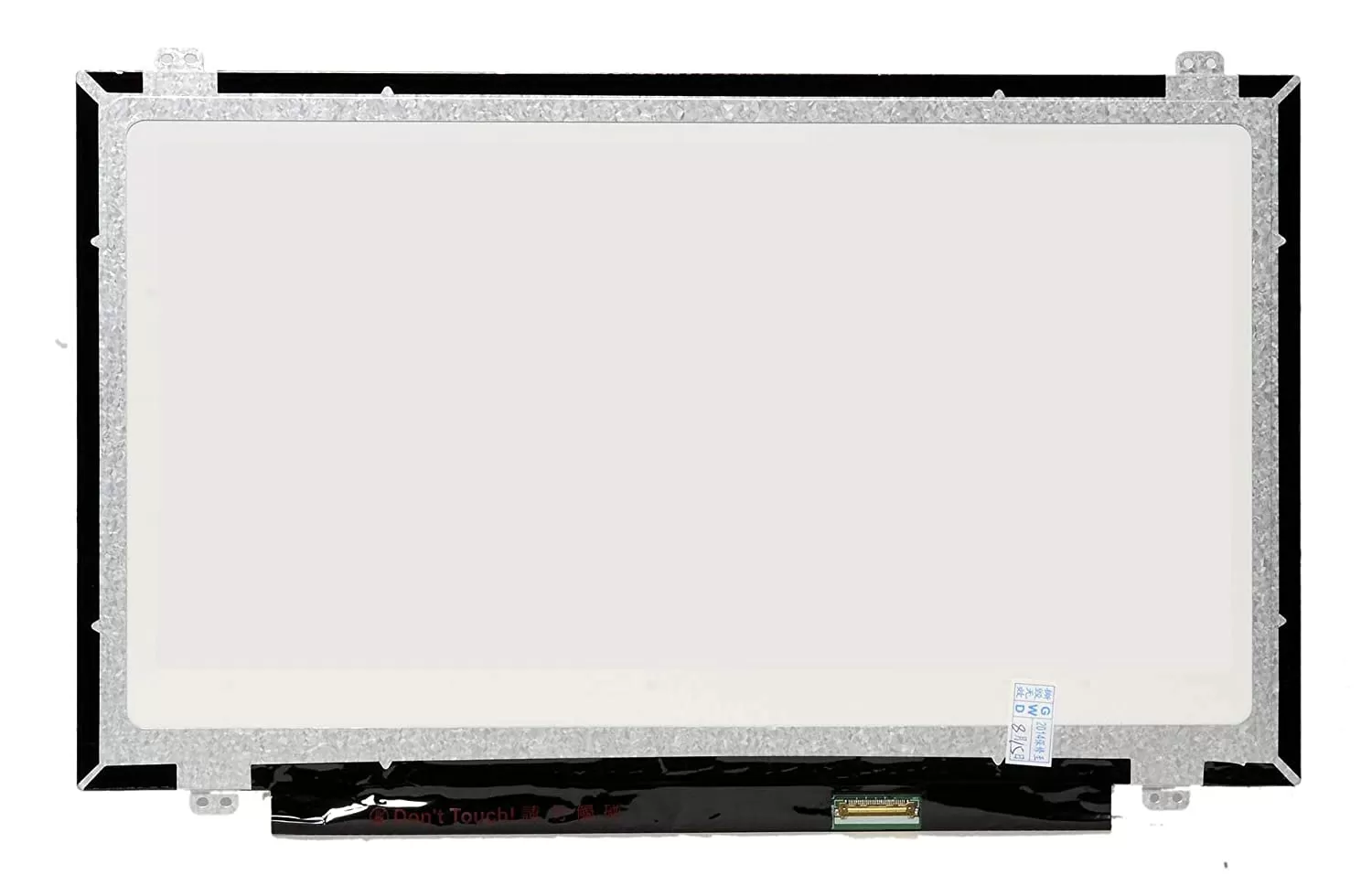

The HP EliteBook 8470p typically uses a 14-inch LED-backlit LCD panel with one of the following resolutions:

Common Compatible Screen Types

✔ 14.0-inch WXGA LED (1366 × 768) – Standard resolution for many EliteBook 8470p models
✔ 14.0-inch HD+ LED (1600 × 900) – Higher resolution option if your laptop originally came with it

Important: Always check your current screen’s resolution and connector type before buying a replacement panel. The EliteBook 8470p uses LED backlighting and most replacement panels use a 30-pin eDP connector.

Tools You’ll Need

Before beginning the screen replacement, gather the following tools:

• Small Phillips screwdriver

• Plastic pry tool / spudger

• Tweezers

• Anti-static wrist strap (optional)

• Clean microfiber cloth

No soldering is required—replacement involves screws and ribbon cables only.

Step-by-Step Screen Replacement Guide

 Safety Tip: Always shut down your laptop, disconnect the power adapter, and remove the battery (if removable) before starting the replacement.

1 — Power Down and Remove Battery

1. Turn off the laptop completely.

2. Unplug the power adapter.

3. Remove the battery from the bottom of the laptop.

2 — Remove the Display Bezel

1. Use a plastic pry tool to gently release the plastic clips holding the front bezel in place.

2. Start at a corner and work slowly around the edges to avoid cracking the plastic frame.

3 — Remove the LCD Panel Screws

1. With the bezel removed, you will see screws securing the screen to the metal brackets on both sides.

2. Carefully remove these screws.

4 — Disconnect the Display Cable

1. Tilt the screen forward slowly.

2. Locate the video/display cable at the back of the screen.

3. Disconnect the cable carefully—do not pull on the cable itself; instead, hold the connector.

5 — Install the New Screen

1. Position the new replacement panel in place.

2. Reconnect the display cable securely to the back of the panel.

3. Reinstall the mounting screws on both sides.

6 — Replace the Bezel and Reinstall Battery

1. Snap the bezel back onto the front of the display assembly.

2. Ensure all clips are fully seated.

3. Reinstall the battery and reconnect the power adapter.

7 — Power On and Test

Power on your laptop to confirm the new screen works properly. Check the display for:

• Correct resolution

• Brightness and color accuracy

• Absence of flickering or lines

Compatibility Checklist Before You Buy

Before purchasing a replacement screen for your HP EliteBook 8470p, confirm:

✔ Screen size: 14.0 inches
✔ Resolution: WXGA (1366 × 768) or HD+ (1600 × 900)
✔ Backlight: LED
✔ Connector type: 30-pin eDP
✔ Bezel type: Slim or standard (matches your laptop frame)

Matching all these ensures your new screen will fit and function correctly.

Common Mistakes to Avoid

Forcing the bezel off with too much pressure
❌ Pulling the display cable incorrectly
❌ Buying the wrong resolution panel
❌ Touching the LCD surface with bare fingers
❌ Skipping compatibility checks

Avoid these errors to ensure a successful installation.

Cost Considerations

The total cost of replacing your laptop screen depends on:

• Screen resolution (HD+ is typically more expensive than WXGA)

• Panel quality (OEM vs. third-party compatible)

• DIY vs. professional installation

• Shipping and handling

Replacing the screen yourself can save on labor costs, but an experienced technician can ensure accuracy and reduce risk.

Professional Installation vs. DIY

Choose professional repair if:

• You are unfamiliar with laptop hardware

• You want warranty protection

• You suspect additional internal damage

• You want quick, precise installation

A technician can also check the display cable and system board to ensure no hidden damage.
