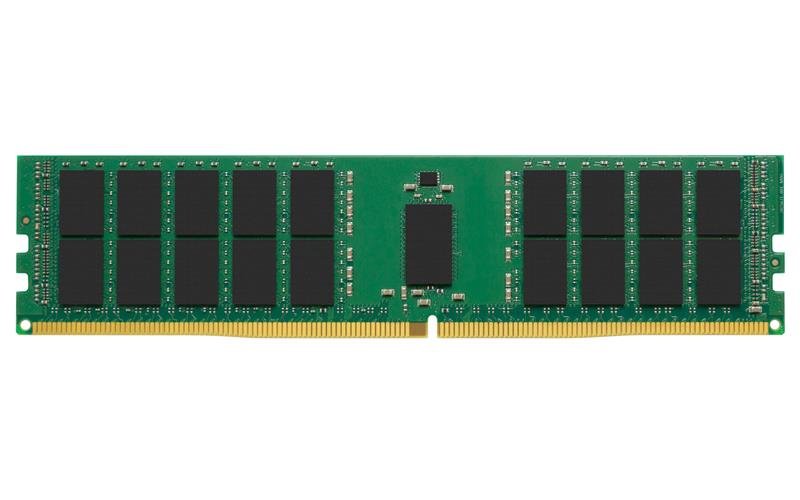

Kingston 128GB DDR4 ECC RAM

Designed for Enterprise-Class Reliability

The Kingston KTH-PL432LQ/128G RAM is engineered for high-performance servers and data-critical environments.
With a massive 128GB capacity, it supports the most memory-intensive enterprise applications.
Its DDR4 architecture delivers data at 3200MHz, ensuring fast response and high bandwidth.
This module provides ECC (Error Correction Code) to detect and correct memory errors on the fly.

Load-Reduced Design for Better Scalability

This is a Load Reduced DIMM (LRDIMM), not a standard registered DIMM.
LRDIMMs reduce the electrical load on memory controllers, improving performance in high-capacity setups.
It is quad-rank (4R), enabling more modules per channel and maximizing total system memory.
As a result, the Kingston 128GB LRDIMM is ideal for multi-CPU servers and enterprise-class workstations.

Kingston 128GB DDR4 ECC RAM is Reliable Architecture and Efficient Operation

The memory operates at just 1.2V, promoting energy efficiency even under full load.
It features a 288-pin DIMM form factor, designed for compatibility with modern server motherboards.
The CAS latency is CL22, balancing speed and stability for mission-critical tasks.
Each chip is based on 32Gbit dual-die package (DDP) DRAM, using Hynix chips with revision C.
Its x4 chip organization supports advanced memory configurations and higher fault tolerance.

Ideal Use Cases

This module suits virtualization, large-scale databases, high-end simulations, and enterprise-grade hosting.
it is compatible with systems that support quad-rank LRDIMMs and ECC memory.
Be sure to check server motherboard specifications before installation, as it’s not for desktop use.

Summary

Here’s a breakdown of the key specifications:
Capacity: 128 GB.
Memory Type: DDR4.
Memory Speed: 3200 MHz (PC4-25600).
ECC: Yes, Error Correcting Code for enhanced reliability.
LRDIMM: Yes, Load Reduced DIMM, designed for higher capacity and improved cooling.
Form Factor: 288-pin DIMM.
Voltage: 1.2 V.

The Kingston 128GB DDR4 ECC RAM module combines capacity, speed, and data protection.
It enhances reliability, reduces power load, and delivers scalable memory performance for enterprise use.
Choose this memory when your server demands maximum uptime and high memory capacity.
