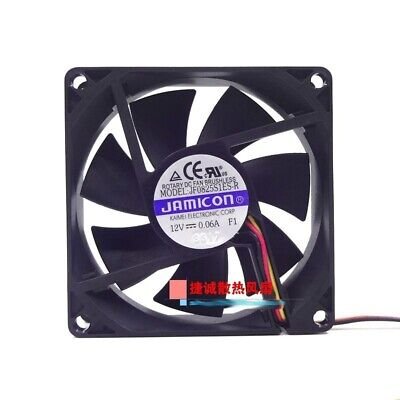

Jamicon JF0825S1ES-R 80mm x 80mm x 25mm DC Brushless Fan – A Complete Technical Overview

When it comes to precision cooling solutions, the Jamicon JF0825S1ES-R stands out as a compact, high-performance DC brushless fan engineered for reliability, efficiency, and durability. Designed to provide powerful airflow in confined spaces, this 80mm x 80mm x 25mm fan is ideal for a wide range of electronics and industrial applications that demand consistent thermal management.

Technical Specifications of the Jamicon JF0825S1ES-R

The Jamicon JF0825S1ES-R is built with cutting-edge brushless motor technology, ensuring quiet operation, energy efficiency, and longer operational life. Below are its core specifications:

• Dimensions: 80mm x 80mm x 25mm

• Voltage: 12V DC

• Current Rating: 0.15A

• Bearing Type: Sleeve Bearing

• Speed: Approximately 2500 RPM

• Airflow: Up to 30.0 CFM

• Noise Level: Approximately 28 dBA

• Connector: 3-pin Molex

• Operating Temperature: -10°C to +70°C

• Life Expectancy: 30,000 hours at 40°C

These specifications make it an exceptional choice for both consumer and commercial-grade electronics.

Why the Jamicon JF0825S1ES-R is an Ideal Cooling Solution

1. Compact Design with High Airflow

The 80mm form factor is a common size for many electronics enclosures, including desktop PCs, industrial controllers, network equipment, and more. Despite its small size, the Jamicon JF0825S1ES-R offers a remarkable airflow rate, efficiently dissipating heat from vital components.

2. Energy Efficient DC Brushless Motor

Thanks to its brushless DC motor design, this fan consumes less power while offering better performance compared to conventional fans. The 0.15A current rating ensures minimal energy draw, making it perfect for low-power systems.

3. Durable Sleeve Bearing Construction

The sleeve bearing mechanism provides cost-effective reliability for general-purpose applications. It balances performance with affordability and offers quiet operation in horizontally mounted configurations.

4. Low Noise Output for Quiet Environments

With a noise level of only 28 dBA, the Jamicon JF0825S1ES-R is suitable for installations where low acoustic output is critical. Whether it’s a home theater PC, a medical device, or a laboratory instrument, the low-noise profile enhances user comfort without compromising cooling performance.

5. Versatile Application Range

The fan’s 3-pin connector provides flexibility in installation and enables speed monitoring via tachometer signal. It can be used in:

• Power supply units

• 3D printers

• Home automation systems

• Audio-video systems

• Digital signage equipment

• Embedded system enclosures

Its wide operating temperature range also makes it suitable for demanding industrial environments.

Installation and Mounting Options

The Jamicon JF0825S1ES-R includes standard 80mm mounting holes, compatible with virtually all enclosures designed for 80mm fans. It can be installed with:

• Standard fan screws

• Rubber vibration dampeners

• Quick-release brackets (optional for tool-less installations)

Orientation matters: the sleeve bearing is ideal for horizontal mounting, which maximizes the fan’s lifespan and ensures optimal lubrication of the bearing.

Thermal Management in Modern Systems

In today’s high-density electronic environments, proper ventilation and heat control are essential to prevent system overheating and failure. The Jamicon JF0825S1ES-R plays a crucial role in:

• Extending the life of sensitive components

• Improving operational stability

• Reducing the risk of thermal throttling in processors and GPUs

• Enabling continuous uptime in server or IoT devices

With rising demand for smaller, quieter, and cooler systems, this fan is a cornerstone in maintaining the thermodynamic balance of critical hardware.

Comparison with Other 80mm Fans

Compared to other brands in the 80mm category, such as Delta, Sunon, or Noctua, the Jamicon JF0825S1ES-R offers:

This comparison shows that while other fans may exceed in certain performance areas, Jamicon offers the best cost-performance ratio for general use cases.

Reliability and Longevity

A key advantage of the Jamicon JF0825S1ES-R lies in its 30,000-hour MTBF (Mean Time Between Failures) rating, which is sufficient for most consumer and light-industrial uses. Its thermal-resistant materials and DC brushless motor design reduce wear and extend life expectancy, even under prolonged operation.

For systems that run 24/7, such as routers, security equipment, and media servers, this fan delivers consistent airflow with minimal downtime.

Where to Buy the Jamicon JF0825S1ES-R

The Jamicon JF0825S1ES-R is available from a wide range of authorized electronics suppliers, including:

• Digi-Key

• Mouser Electronics

• RS Components

• AliExpress

• Local electronics wholesalers

Always ensure the seller provides genuine Jamicon products with appropriate warranty and datasheet documentation.

Conclusion: The Optimal 80mm Fan for Versatile Cooling Needs

Whether you’re building a custom PC, upgrading an industrial controller, or maintaining a compact server rack, the Jamicon JF0825S1ES-R delivers the perfect balance of airflow, noise reduction, and energy efficiency. Its durability, size compatibility, and affordable pricing make it a preferred choice for professionals and enthusiasts alike.

By integrating this fan into your setup, you can ensure stable thermal performance, extend the lifespan of your components, and maintain a quiet operational environment—all with the trusted engineering of Jamicon.
