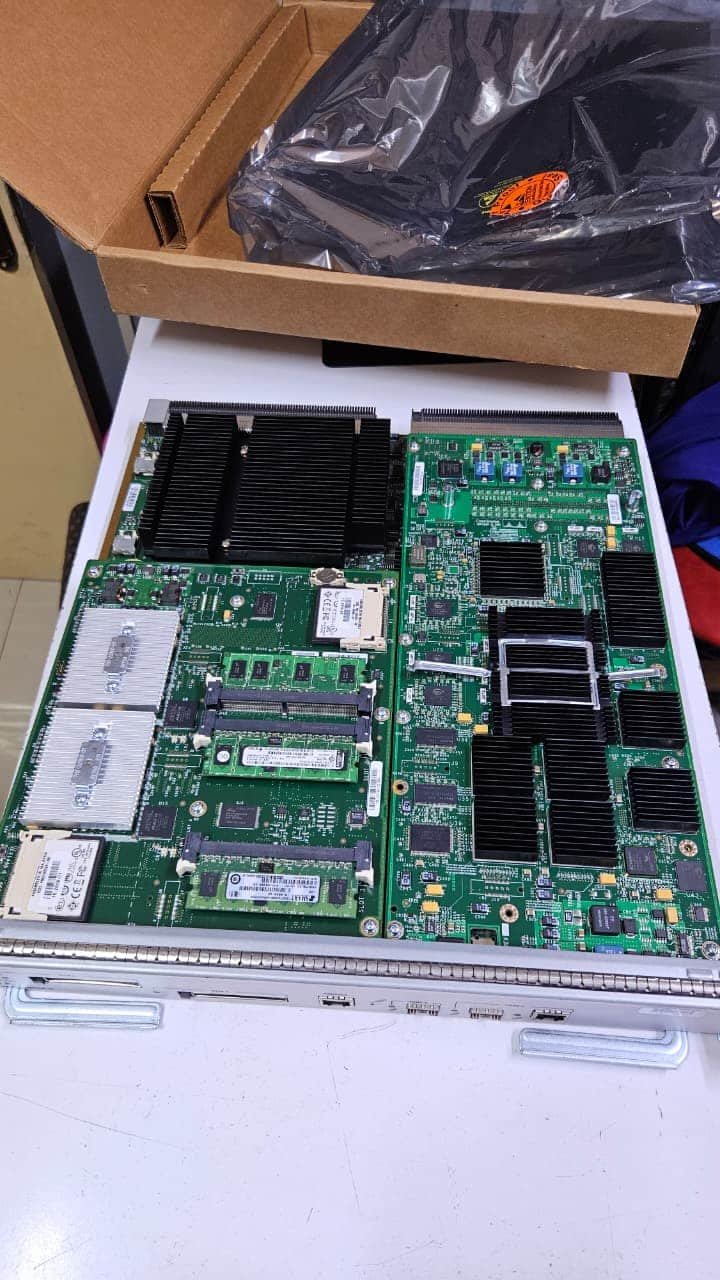

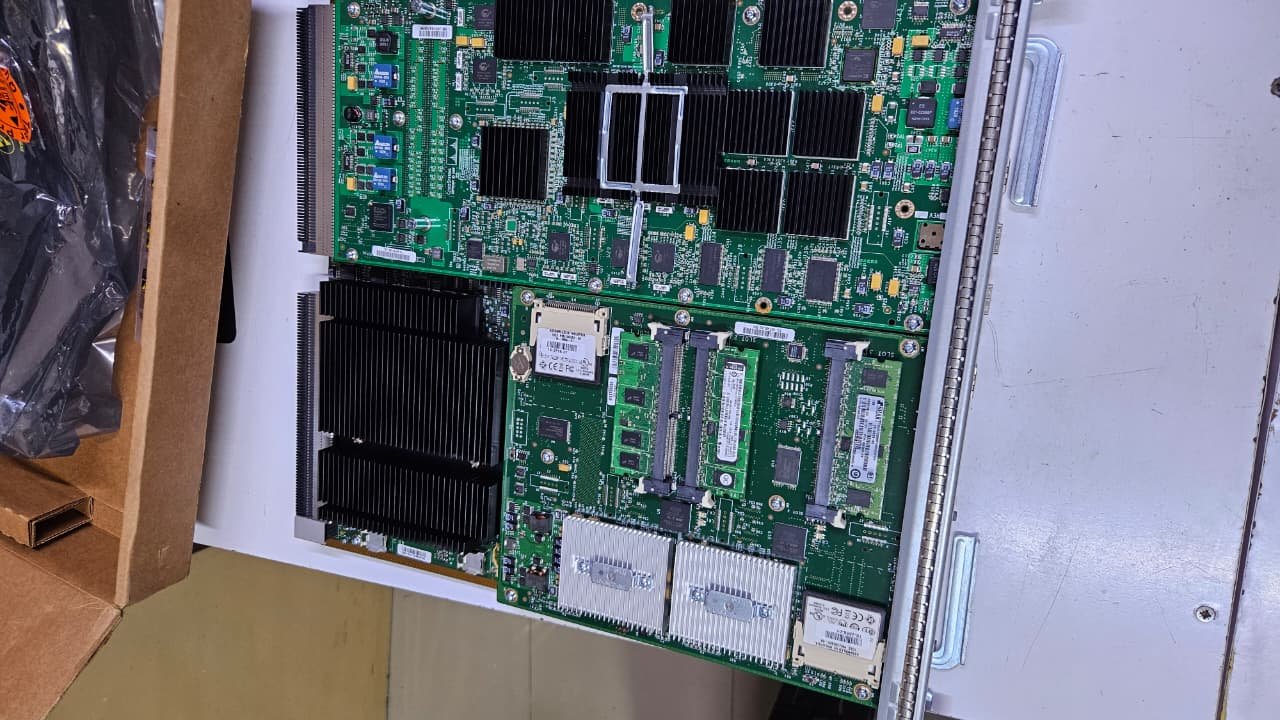

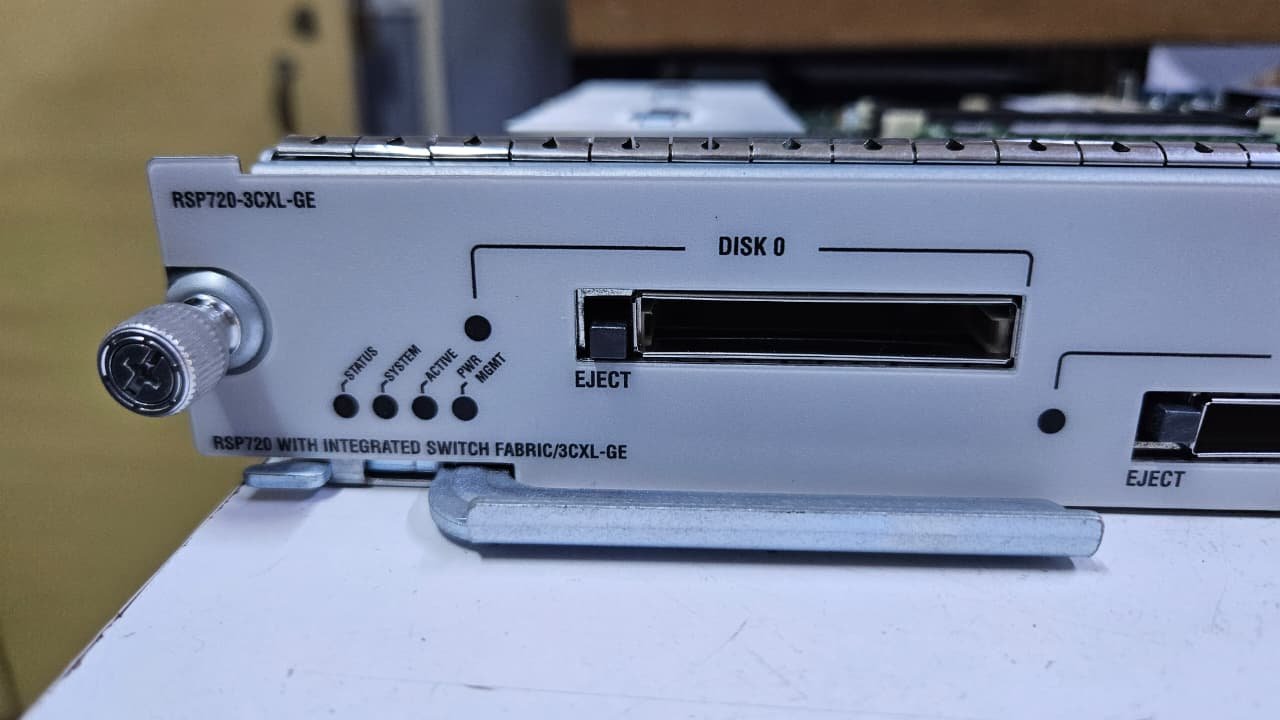

Cisco RSP720-3CXL-GE Cisco 7600 Route Switch Processor 720Gbps
The Cisco RSP720-3CXL-GE is a high-capacity Route Switch Processor 720 designed for compatible Cisco 7600 Series routers. Featuring an integrated 720 Gbps switch fabric, PFC3CXL high-capacity forwarding and MSFC4 routing capabilities, this Cisco route switch processor is designed for demanding enterprise, service-provider, ISP and telecommunications networking environments.
The RSP720-3CXL-GE is particularly relevant for organizations already operating compatible Cisco 7600 infrastructure and looking for a replacement route switch processor, network upgrade component or spare unit. Cisco documentation identifies the RSP720-3CXL-GE as a 7600 Series Route Switch Processor with PFC3CXL, MSFC4, an integrated 720-Gbps switch fabric, and two Gigabit Ethernet uplink ports.
Cisco RSP720-3CXL-GE Overview
The Cisco RSP720-3CXL-GE is built for high-performance routing and switching within compatible Cisco 7600 Series platforms. Unlike a conventional standalone network switch or router, the RSP720 is a core processing component installed in a compatible Cisco 7600 chassis.
The 3CXL configuration incorporates Cisco’s high-capacity PFC3CXL forwarding architecture together with an MSFC4 multilayer switch feature card. Cisco documents hardware-assisted forwarding for IP and MPLS traffic and improved processing for routing protocols and network services.
With its 720 Gbps integrated switch fabric, the RSP720-3CXL-GE is intended for network environments handling substantial traffic volumes and demanding routing requirements.
For businesses, ISPs, telecommunications operators and network engineers maintaining Cisco 7600 infrastructure, this processor can serve as a replacement, spare or upgrade component where the specific chassis and software configuration are compatible.
Key Features of Cisco RSP720-3CXL-GE
- Cisco RSP720-3CXL-GE Route Switch Processor
- Designed for compatible Cisco 7600 Series routers
- 720 Gbps integrated switch fabric
- PFC3CXL high-capacity forwarding
- MSFC4 multilayer switching and routing
- Two integrated Gigabit Ethernet uplink ports
- One uplink supports a 1-Gbps SFP
- Second uplink supports either 1-Gbps SFP or 10/100/1000 Mbps RJ-45
- Hardware-assisted IP and MPLS forwarding
- 512 MB bootflash
- 4 MB NVRAM
- 4 MB ROMMON
- Two front-panel CompactFlash Type II slots
- Designed for high-capacity enterprise and service-provider networking
- Suitable for replacement, expansion and network infrastructure maintenance
Cisco RSP720-3CXL-GE Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cisco |
| Model | RSP720-3CXL-GE |
| Product Type | Route Switch Processor |
| Product Family | Cisco RSP720 |
| Compatible Platform | Cisco 7600 Series |
| Switching Fabric | 720 Gbps |
| Forwarding Feature Card | PFC3CXL |
| Multilayer Switch Feature Card | MSFC4 |
| Integrated Uplinks | 2 × Gigabit Ethernet |
| Uplink Port 1 | 1-Gbps SFP |
| Uplink Port 2 | 1-Gbps SFP or 10/100/1000 Mbps RJ-45 |
| Route Processor Memory | 1 GB–4 GB DRAM; 2 GB default |
| Switch Processor Memory | 1 GB–2 GB DRAM; 1 GB default |
| Bootflash | 512 MB |
| NVRAM | 4 MB |
| ROMMON | 4 MB |
| CompactFlash | 2 × CompactFlash Type II slots |
| Internal CompactFlash | 2 GB |
| QoS Architecture | 1p1q4t / 1p2q2t |
| Minimum documented IOS release | Cisco IOS 12.2(33)SRB |
| Power Requirement | 7.33 A @ 42 V |
| Application | Enterprise, ISP, carrier and service-provider networking |
| Price | KSh 110,000 |
Technical specifications are based on Cisco’s documented specifications for the RSP720-3CXL-GE.
720 Gbps Switching Capacity
One of the main specifications of the Cisco RSP720-3CXL-GE is its integrated 720 Gbps switch fabric.
This high-capacity switching architecture is designed for Cisco 7600 environments where substantial traffic must be processed and forwarded across the network. The RSP720 architecture also integrates Layer 2 and Layer 3 functions and supports hardware-based forwarding of IP and MPLS traffic.
The 720 Gbps figure refers to the processor’s switch fabric capacity. It should not be interpreted as meaning that the two integrated Gigabit Ethernet ports individually operate at 720 Gbps.
PFC3CXL High-Capacity Forwarding
The PFC3CXL is the high-capacity forwarding component incorporated into the RSP720-3CXL-GE.
It works together with the MSFC4 to provide Layer 2 and Layer 3 processing and hardware-assisted forwarding capabilities. Cisco also documents support for IP and MPLS traffic forwarding on the RSP720 architecture.
This makes the RSP720-3CXL-GE suitable for network environments where high-volume routing and forwarding are required.

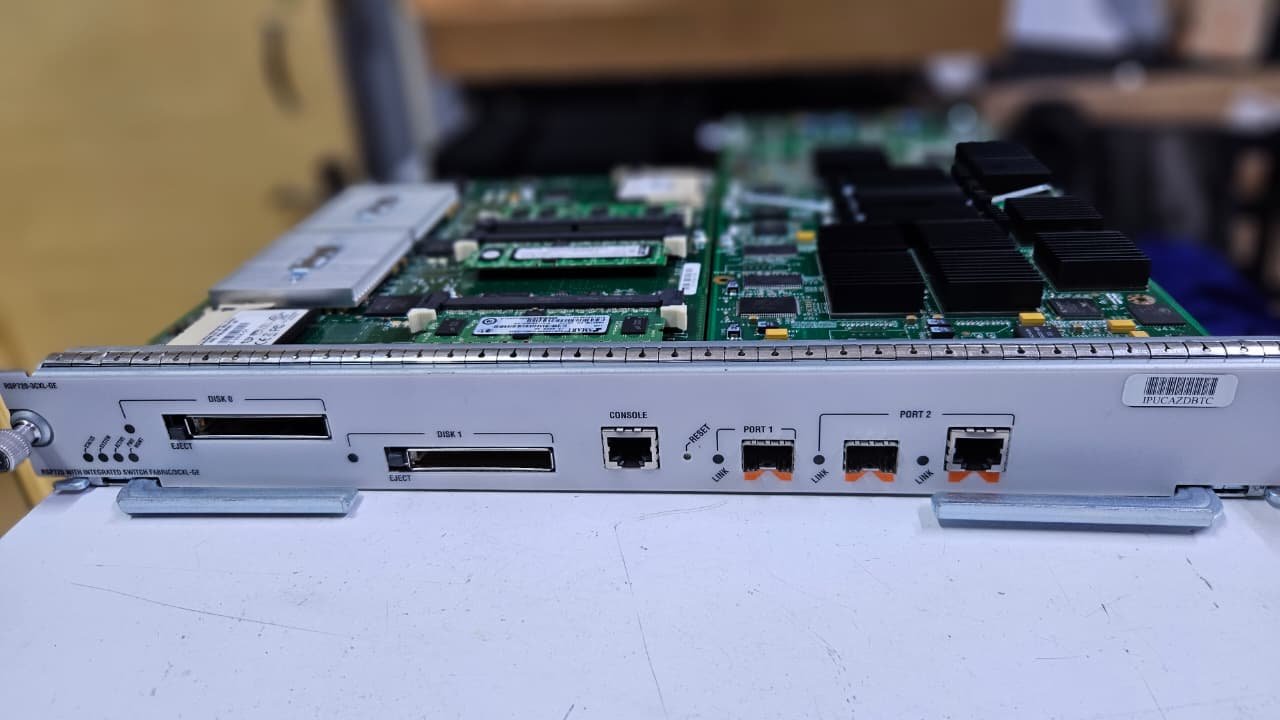

Two Gigabit Ethernet Uplink Ports
The Cisco RSP720-3CXL-GE includes two integrated Gigabit Ethernet uplink ports.
The first port supports a 1-Gbps SFP module, while the second can be configured for either a 1-Gbps SFP module or 10/100/1000 Mbps RJ-45 connectivity, depending on the configuration and supported hardware.
Applications
ISP and Internet Infrastructure
The Cisco RSP720-3CXL-GE can be used in compatible Cisco 7600 infrastructure deployed by Internet service providers and network operators for routing and traffic aggregation.
Telecommunications Networks
Telecommunications companies can use compatible Cisco 7600 platforms in network infrastructure requiring high-capacity routing and switching.
Enterprise Network Infrastructure
Large organizations operating Cisco 7600 platforms can use the RSP720-3CXL-GE as a replacement or spare processor for their existing network infrastructure.
Data Centre Networking
The processor can form part of compatible Cisco 7600 deployments used for high-volume traffic aggregation and routing.
Network Equipment Replacement
If an existing Cisco RSP720-3CXL-GE has failed or requires replacement, sourcing the same part number can help maintain compatibility with the existing Cisco 7600 infrastructure.
Cisco RSP720-3CXL-GE Compatibility
Compatibility is an important consideration before purchasing this Cisco route switch processor.
The RSP720-3CXL-GE is designed for compatible Cisco 7600 Series platforms, but Cisco documentation identifies certain chassis and module limitations. For example, Cisco specifically lists the Cisco 7603 and OSR-7609 as unsupported chassis for this model under the documented configuration.
Customers should therefore confirm their:
- Cisco 7600 chassis model
- Existing route switch processor
- Line cards and modules
- Cisco IOS version
- Power supply configuration
- Existing network configuration
before purchasing.
If you are unsure whether the RSP720-3CXL-GE will work with your Cisco 7600 chassis, contact Lansotech Solutions with the chassis model and existing processor details for compatibility checking.
Cisco RSP720-3CXL-GE Price in Kenya
Lansotech Solutions supplies the Cisco RSP720-3CXL-GE in Kenya for organizations, network engineers, ISPs, telecommunications companies and businesses maintaining Cisco 7600 networking infrastructure.
Contact Lansotech Solutions to confirm stock availability, physical condition, compatibility and delivery options before ordering.
Frequently Asked Questions
What is the Cisco RSP720-3CXL-GE?
The Cisco RSP720-3CXL-GE is a Route Switch Processor 720 designed for compatible Cisco 7600 Series routers. It incorporates PFC3CXL high-capacity forwarding and MSFC4 routing functionality.
What is the switching capacity of the Cisco RSP720-3CXL-GE?
The Cisco RSP720-3CXL-GE has an integrated 720 Gbps switch fabric.
Is the Cisco RSP720-3CXL-GE a standalone router?
No. The RSP720-3CXL-GE is a Route Switch Processor designed to be installed in a compatible Cisco 7600 Series chassis. It should not be treated as a standalone desktop or rack-mount router.
What Cisco routers support the RSP720-3CXL-GE?
It is designed for compatible Cisco 7600 Series platforms. Cisco’s documentation provides specific chassis and module compatibility requirements, so the exact chassis configuration should be checked before purchase.
Does the RSP720-3CXL-GE support Gigabit Ethernet?
Yes. The RSP720-3CXL-GE has two integrated Gigabit Ethernet uplink ports. One supports a 1-Gbps SFP, while the other supports either a 1-Gbps SFP or 10/100/1000 Mbps RJ-45.
What is PFC3CXL?
PFC3CXL is the high-capacity Policy Feature Card incorporated into the RSP720-3CXL-GE. It works with the MSFC4 to provide routing and forwarding functionality within the Cisco 7600 platform.
What is the price of Cisco RSP720-3CXL-GE in Kenya?
The selling price from Lansotech Solutions is KSh 110,000.
Can I use the Cisco RSP720-3CXL-GE in any Cisco 7600 chassis?
No. Compatibility depends on the specific Cisco 7600 chassis, installed modules, software and system configuration. Confirm compatibility before purchasing. Cisco lists specific unsupported configurations for this model.
Where can I buy Cisco RSP720-3CXL-GE in Kenya?
You can purchase the Cisco RSP720-3CXL-GE from Lansotech Solutions in Kenya for KSh 110,000, subject to stock availability.
