Lenovo IdeaPad 310 Keyboard Replacement – Complete Technical Guide

At Lansotech Solutions, we pride ourselves on being among the best laptop keyboard shops in Nairobi CBD, trusted for supplying genuine Lenovo spare parts and providing expert repair services. If your Lenovo IdeaPad 310 keyboard is malfunctioning—keys are stuck, unresponsive, or physically broken—replacing it with an original keyboard ensures your laptop performs like new. Below is an in‑depth technical guide tailored for technicians and users who demand precision and detail.

Compatible Models for This Keyboard

The Lenovo IdeaPad 310 keyboard is used across multiple 310 series configurations, including:

• Lenovo IdeaPad 310-14ISK / 310-14IKB

• Lenovo IdeaPad 310-15ISK / 310-15IKB

• Lenovo IdeaPad 310-15ABR

Always confirm your exact model and part number before ordering.

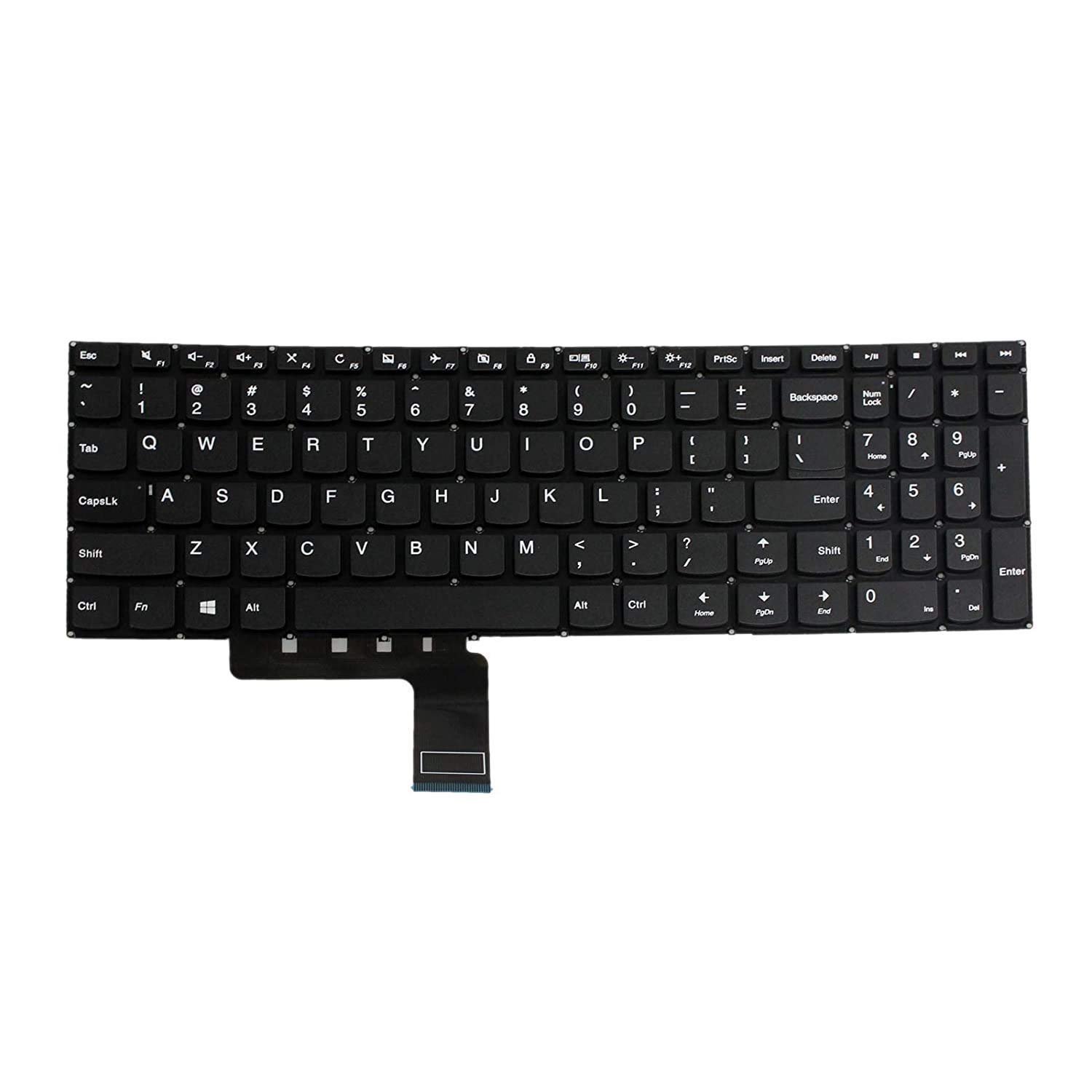

Technical Specifications of Lenovo IdeaPad 310 Keyboard

• Keyboard Type: Full‑size chiclet-style keyboard with integrated numeric keypad (for 15‑inch models)

• Switch Technology: Scissor-switch low-profile keys for smooth actuation

• Key Travel Distance: Approximately 1.4 mm for comfortable typing feedback

• Backlight: Standard version is non-backlit

• Interface: Flat flexible ribbon cable (FFC) connected via ZIF (Zero Insertion Force) connector

• Mounting: Integrated into the top case/palmrest assembly secured with screws and plastic rivets

• Durability Features: Spill-resistant membrane layer, Fn shortcuts for multimedia and system controls

Required Tools and Parts

• Genuine Lenovo IdeaPad 310 keyboard (match layout and part number)

• Precision screwdrivers: Phillips #0/#00

• Torx T5 screwdriver for bottom housing

• Plastic pry tools/spudgers

• Tweezers for handling the ribbon cable

• Anti‑static wrist strap to protect internal circuitry

Step‑by‑Step Keyboard Replacement Procedure

1. Power Down and Prepare

• Shut down your laptop completely.

• Disconnect the power adapter and all peripherals.

• Press and hold the power button for 10 seconds to discharge static power.

2. Remove the Bottom Cover

• Turn the laptop upside down on a clean, soft surface.

• Remove all screws from the base using a T5 screwdriver.

• Gently pry around the edges to lift off the bottom cover without bending clips.

3. Disconnect the Battery

• Locate the internal battery connector on the motherboard.

• Carefully unplug the connector to prevent accidental shorts during disassembly.

4. Detach the Keyboard Cable

• Trace the keyboard ribbon cable to the motherboard.

• Lift the ZIF connector latch and slide the ribbon cable out carefully.

5. Remove the Existing Keyboard

• From the inner side of the top case, remove the screws or melt locks holding the keyboard.

• Push the old keyboard outward through the top surface of the palmrest.

6. Install the New Keyboard

• Align the new Lenovo IdeaPad 310 keyboard in the palmrest frame.

• Secure it with the screws or replacement rivets.

• Reinsert the ribbon cable into the ZIF connector and lock it firmly.

7. Reassemble and Test

• Reconnect the internal battery.

• Reattach the bottom cover and fasten all screws.

• Power on the laptop and test all keys—including numeric pad and function keys—to confirm full operation.
